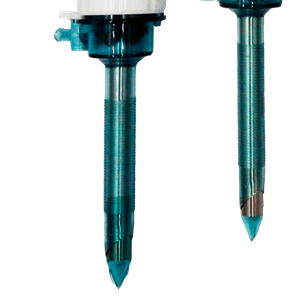

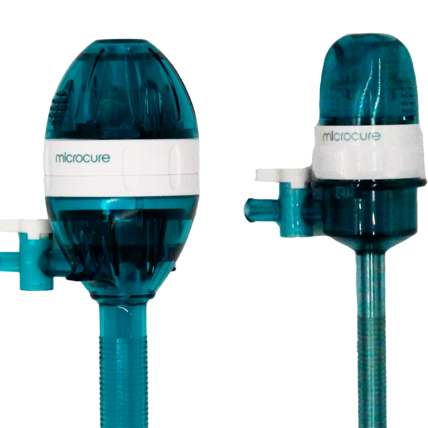

The Disposable trocar is mainly composed of a trocar cannula assembly and a puncture rod assembly. The trocar cannula assembly consists of upper shell, valve body, valve core, choke valve and lower casing. The puncture rod assembly is mainly composed of puncture cap, button puncture tube and piercing head.
It is sterilized by ethylene oxide. It direct contace with human body for no more than 60minutes.
WZDT-3/100, WZDT-5/100, WZDT-10/100, WZDT-12/100, WZDT-15/100
Microcure
9018909919
Availability: | |
---|---|
Quantity: | |
The Disposable trocar is mainly composed of a trocar cannula assembly and a puncture rod assembly. The trocar cannula assembly consists of upper shell, valve body, valve core, choke valve and lower casing. The puncture rod assembly is mainly composed of puncture cap, button puncture tube and piercing head.
It is sterilized by ethylene oxide. It direct contace with human body for no more than 60minutes.
Scope of application:
Applicable to the establishment of microports for introduction of endoscopes and laparoscopic
instruments.
Product features:
1. Visible puncture design, with transparent puncture rob tip,camera can be placed in puncture to prevent accidental tissue injury.
2. The design of double valves,makes good air tightness and no need for converter during operation.
3. The cannula and sealing caps are separable,which allows the easy removal of tissue during operation
4. The ergonomic grip design makes the comfortable handling of the device
5. The reverse thread design,makes the insertion smooth,and prevents the undesired movement and operation.
6. The fin type design makes insertion smooth
Specifications&Models:
SPECIFICATION | MODELS | PACKAGE CONTENT | CASING WORKING LENGTH (mm) |
Set package1 | VT5-100 | 5mm Trocarx2 | 103 |
VT8-100 | 10mm Trocarx2 | 103 | |
V12-100 | 12mm Trocarx2 | 103 | |
Set package2 | V19-100 | 5mm Trocarx2+10mm Trocarx1 | 103 |
VT25-100 | 5mm Trocarx1+10mm Trocarx2 | 103 | |
VT28-100 | 5mm Trocarxl+12mm Trocarx2 | 103 | |
Set package3 | VT40-100 | 5mm Trocarx2+10mm Trocarx2 | 103 |
VT43-100 | 5mm Trocarx2+12mm Trocarx2 | 103 | |
VT46-100 | 5mm Trocarx2+10mm Trocarx1+12mm Trocarx1 | 103 | |
Set package4 | VT60-100 | 5mm Trocarx2+10mm Trocarx2+12mm Trocarx1 | 103 |
VT61-100 | 5mm Trocarx2+10mm Trocarx1+12mm Trocarx2 | 103 | |
Individual | WZDT-A-3/55 | 3mm Trocarx1 | 55 |
WZDT-A-5/100 | 5mm Trocarx1 | 103 | |
WZDT-A-10/100 | 10mm Trocarx1 | 103 | |
WZDT-A-12/100 | 12mm Trocarx1 | 103 | |
WZDT-A-15/100 | 15mm Trocarx1 | 103 |
The Disposable trocar is mainly composed of a trocar cannula assembly and a puncture rod assembly. The trocar cannula assembly consists of upper shell, valve body, valve core, choke valve and lower casing. The puncture rod assembly is mainly composed of puncture cap, button puncture tube and piercing head.
It is sterilized by ethylene oxide. It direct contace with human body for no more than 60minutes.
Scope of application:
Applicable to the establishment of microports for introduction of endoscopes and laparoscopic
instruments.
Product features:
1. Visible puncture design, with transparent puncture rob tip,camera can be placed in puncture to prevent accidental tissue injury.
2. The design of double valves,makes good air tightness and no need for converter during operation.
3. The cannula and sealing caps are separable,which allows the easy removal of tissue during operation
4. The ergonomic grip design makes the comfortable handling of the device
5. The reverse thread design,makes the insertion smooth,and prevents the undesired movement and operation.
6. The fin type design makes insertion smooth
Specifications&Models:
SPECIFICATION | MODELS | PACKAGE CONTENT | CASING WORKING LENGTH (mm) |
Set package1 | VT5-100 | 5mm Trocarx2 | 103 |
VT8-100 | 10mm Trocarx2 | 103 | |
V12-100 | 12mm Trocarx2 | 103 | |
Set package2 | V19-100 | 5mm Trocarx2+10mm Trocarx1 | 103 |
VT25-100 | 5mm Trocarx1+10mm Trocarx2 | 103 | |
VT28-100 | 5mm Trocarxl+12mm Trocarx2 | 103 | |
Set package3 | VT40-100 | 5mm Trocarx2+10mm Trocarx2 | 103 |
VT43-100 | 5mm Trocarx2+12mm Trocarx2 | 103 | |
VT46-100 | 5mm Trocarx2+10mm Trocarx1+12mm Trocarx1 | 103 | |
Set package4 | VT60-100 | 5mm Trocarx2+10mm Trocarx2+12mm Trocarx1 | 103 |
VT61-100 | 5mm Trocarx2+10mm Trocarx1+12mm Trocarx2 | 103 | |
Individual | WZDT-A-3/55 | 3mm Trocarx1 | 55 |
WZDT-A-5/100 | 5mm Trocarx1 | 103 | |
WZDT-A-10/100 | 10mm Trocarx1 | 103 | |
WZDT-A-12/100 | 12mm Trocarx1 | 103 | |
WZDT-A-15/100 | 15mm Trocarx1 | 103 |
Q:If you’re to use 5mm instrument into 10.8mm trocar,will it leak?
A: No, Microcrue Trocar with double valves,sealing cap make good air tightness. Testing by 4kPa pressure,still no leak
The lab test in below:
Close the vent valve of the trocar,plug at the end of the trocar sleeve. Gas injection 4kapa,Submerge the Trocar sleeve in water for one min.The result is no gas leak, could prove the double valves make good air tightness.
Close the vent valve of the trocar, plug at the end of the trocar ,Gas injection 4kapa,Submerge the Trocar sleeve in water for one min,take out the trocar puncture rod. Keep for one min. The result shows bubbles less than 20, which proves that the air tightness of the vent valve is good.
Q:Are your trocars compatible with J&J and Medtronic staplers diameter?
A:Yes.All the stapler equipment should comply the national standard. The stapler relaods tolerance ±0.2mm, The reload staple height 2.0/2.5/3.5mm recommed 12mm size trocar. The reload staple height4.mm recommmed 15mm size trocar.
