WZIPS-A
Microcure
9018909999
Availability: | |
---|---|

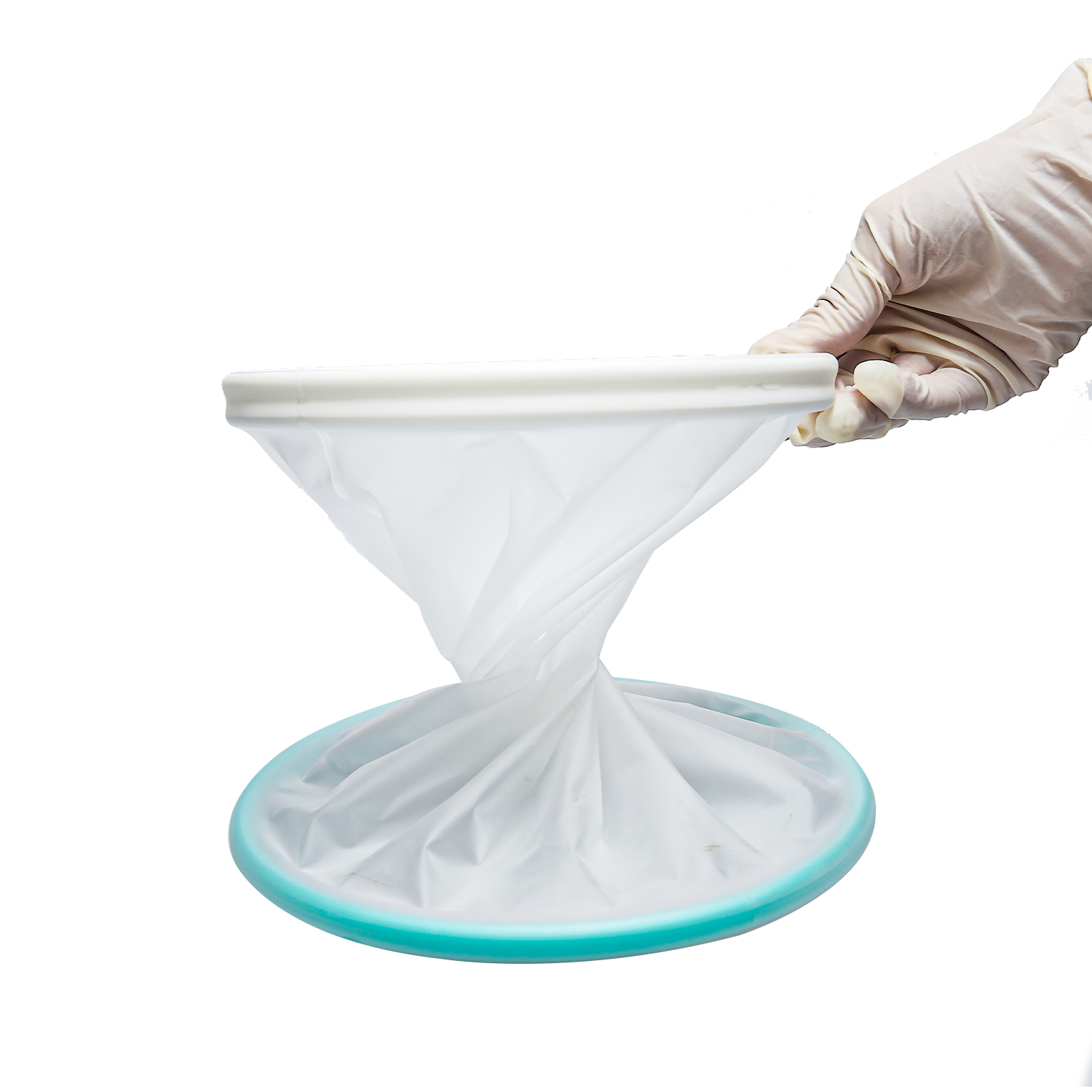

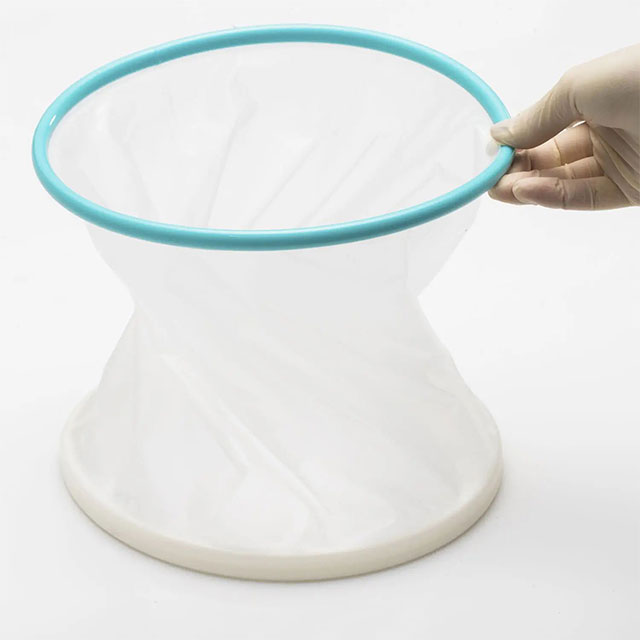

The Disposable Incision Protection Sleeve comprises of an outer ring, an insertion ring, and a channel. It assists in surgical procedures by facilitating incisions, reducing bleeding, and averting infection.
Two product series are offered: the Polymer IPS-A series and the Silicone IPS-B series. The Polymer IPS-A series is adjustable for height and made of polymer, whereas the Silicone IPS-B series is made of silicone material and fixed in height.
Scope of application:
It is suitable for endoscopic surgery and small incision operation, extending incision field, protecting incision from injury, and reducing incision infection.
Polymer IPS-A series are applicable to general surgery,G&A surgery,laparotomy and other open surgeries with
large incision.Silicone IPS-B series apply to thoracoscopic surgery,suspended laparoscopic surgery and other surgeries with
small incision.
Product features:
1. Keep the incision safe: avoid infection by external and internal sources, prevent tumor spread, and maintain moisture levels.
2. Optimal surgical field visibility: safely open the incision from all angles, widen the surgical view, and safeguard the incision from harm.
3. Ideal for obstetrics and gynecology procedures: prevents endometriosis after cesarean section, reduces pain, and avoids injury and tension.
4. Stringent material selection, superior production techniques, and thorough factory testing ensure product quality.
Specifications&Models:
Models | Size | Inner ring diameter(mm) | Tunnel diameter (mm) | Outer ring diameter (mm) | Tunnel length (mm) | |
WZIPS-A | S | 50/50-50/220 | 50 | 50 | 50 | 220 |
60/70-60/220 | 70 | 60 | 60 | 220 | ||
60/70-60/150 | 70 | 60 | 60 | 150 | ||
80/90-80/150 | 90 | 80 | 80 | 150 | ||
M | 120/130-120/220 | 130 | 120 | 120 | 220 | |
M&L | 150/160-150/220 | 160 | 150 | 150 | 220 | |
L | 180/190-180/220 | 190 | 180 | 180 | 220 | |
XL | 220/230-220/250 | 230 | 220 | 220 | 250 | |
250/260-250/100 | 260 | 250 | 250 | 100 | ||
WZIPS-B | S | 40/30-15/20 | 30 | 40 | 15 | 20 |
50/40-25/25 | 40 | 50 | 25 | 25 | ||
70/70-35/25 | 70 | 70 | 35 | 25 | ||
70/60-45/25 | 60 | 70 | 45 | 25 | ||
150/70-60/5 | 70 | 150 | 60 | 5 |
