Medical Reusable 15Mm Laparoscopic Trocar with CE certificate

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Disposable trocars are surgical products used in minimally invasive surgical procedures to establish a laparoscopic surgical channel for the passage of endoscopes and other surgical instruments.The Disposable trocar is mainly composed of a trocar cannula assembly and a puncture rod assembly.
  • WZDT-3/100, WZDT-5/100, WZDT-10/100, WZDT-12/100, WZDT-15/100

  • Microcure

  • 9018909919

Color:
DIAMETER(mm):
Availability:
Quantity:
  • Product Name

Disposable Trocar


  • Brief Introduction

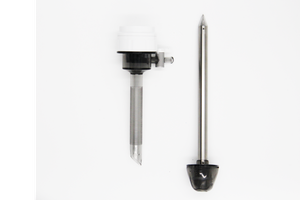

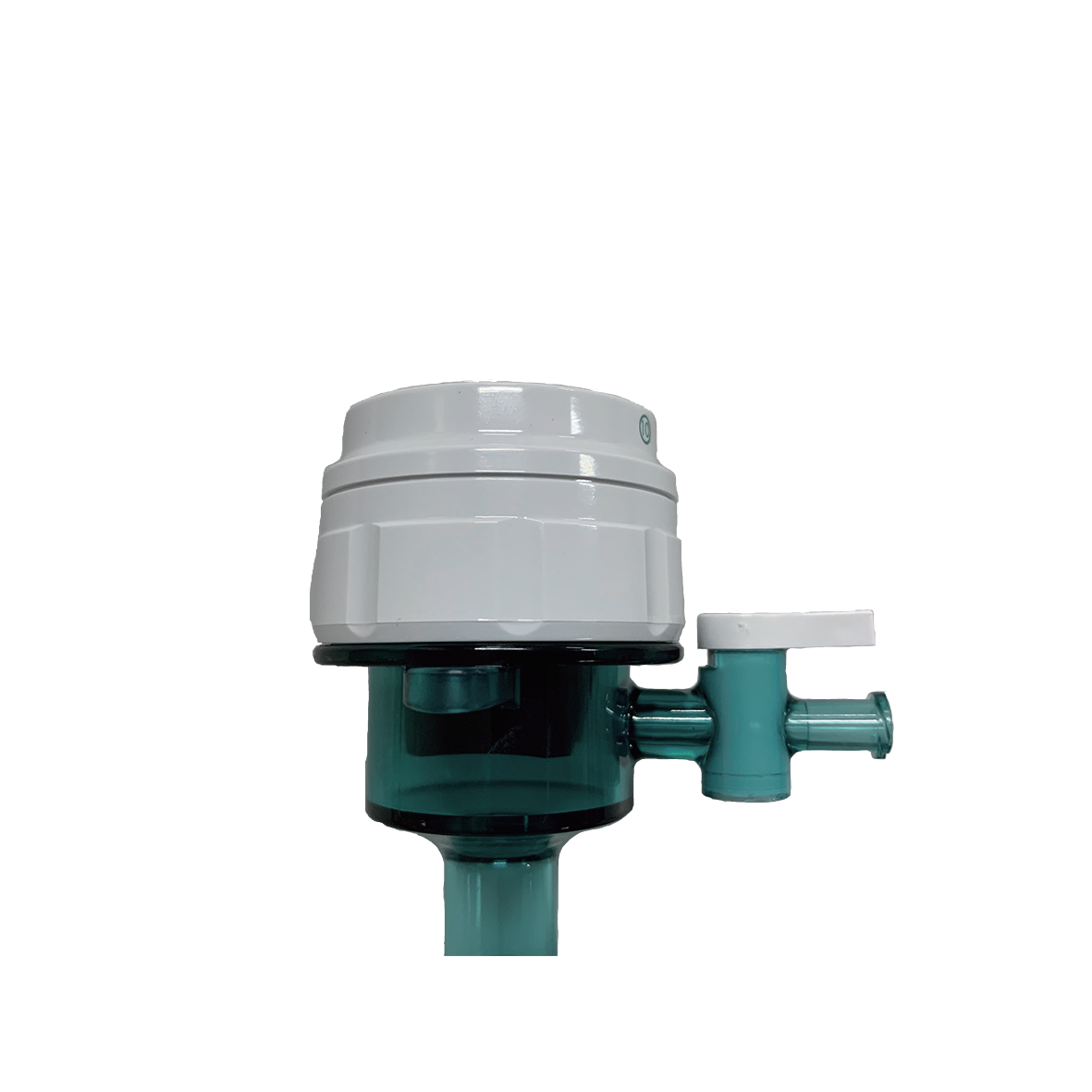

The Disposable trocar is mainly composed of a trocar cannula assembly and a puncture rod assembly. The trocar cannula assembly consists of upper shell, valve body, valve core, choke valve and lower casing. The puncture rod assembly is mainly composed of puncture cap, button, puncture tube and piercing head.

It is sterilized by ethylene oxide. It direct contace with human body for no more than 60minutes.

  • Intended use

It is suitable for puncturing human abdominal wall tissue during laparoscopic examination and operation, and establishing working passage for abdominal operation.


  • Contraindications

This instrument can not be used in general contraindications of endoscopic surgery.

  • Product Code

Table 1 basic dimensions of disposable trocar   Unit: mm

Model specification

Inner diameter of casing

Φ

tolerance

Working length of puncture cannula

(L1)

tolerance

Working length of puncture rod (L2)

tolerance

WZDT-A-3/100

3.8

+0.15

0

103

±2

184

±5

WZDT-A-5/100

5.8

+0.3

0

103

184

WZDT-A-10/100

10.8

103

197

WZDT-A-12/100

12.8

103

197

WZDT-A-15/100

15.8

103

197


  • Product performance

1.  The cooperation between the puncture cannula and the puncture rod should be good, and there should be no stuck phenomenon when the puncture cannula interacts with the puncture rod.

2.  The maximum fit clearance between the puncture cannula and the puncture rod should be no more than 0.3mm.

3.  When the puncture cannula cooperates with the puncture rod, the end of the puncture rod must be completely exposed.

4.  The opening and closing of the air injection valve and the air blocking valve of the puncture device should be flexible, and there should be no blocking phenomenon.

5. The ventilation valve and upper shell (sealing cap) of the trocar should have good sealing property and there should be no leakage after 4 kPa air pressure.

6. The air-blocking valve of the trocar should have good air-blocking performance. After 4 kPa air pressure, the number of bubbles should be less than 20.


  • Packaging

Inside package use Paper-plastic bag packaging consisting of PE/PET composite film and Tevek1059B,the mid package use carton box, ten finished products in one carton box, include instructions for use, outside is corrugated box.


  • Service Life

The self-life of the product is 2 years after sterilization.
