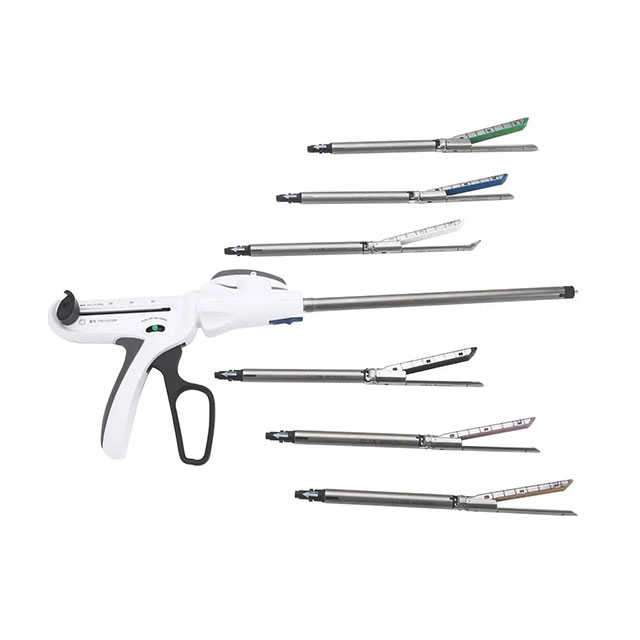

Disposable endoscopic linear cutter stapler and reloads

Disposable endoscopic linear cutter stapler and reloads is mainly composed of lock sleeve, shell, upper and lower regulating housing, lock pin, push block, fixed handle, firing handle, staple housing seat, staple anvil, staple anvil cover, Press cover ,safety board and staple. Each stapler does not contain its own components.
It places two triple-staggered rows of titanium staples. The stapler can take the place of handwork to cut and suture the tissue at the same time. By using the stapler can shorten operation time, decrease the work of doctors, and avoid the possibility of cross infection.
It is sterilized by irradiation. The stapler nails are normally intended for continuous use for more than 30 days.

Model:
WZULS-A-L

Availability:

The Disposable Endoscopic Linear Cutter Stapler and Reloads consist of various parts such as the lock sleeve, shell, upper and lower regulating housing, lock pin, push block, fixed handle, firing handle, staple housing seat, staple anvil, staple anvil cover, press cover, safety board, and staple. It is important to note that each stapler does not have its own set of components.

This stapler is designed to place two triple-staggered rows of titanium staples, which can replace manual cutting and suturing of tissues. Using this stapler can reduce the operation time, lessen the workload of doctors, and prevent the risk of cross-infection. The stapler nails are sterilized through irradiation and can be used continuously for more than 30 days.

The Disposable Endoscopic Linear Cutter Stapler and Reloads can be used for resection, transection, and anastomosis of lung, bronchial tissue, stomach, and intestine in open or endoscopic surgery.

The product features a curved tip at the distal end of the anvil, which ensures safe resection and anastomosis of blood vessels through visualization. It also allows for blunt dissection of tissues or organs. Additionally, the special droplet-shaped groove design ensures B-shaped staple formation and provides better results.

Specifications&Models:

STAPLER	MODELS	LENGTH(mm)	SHAFT DIAMETER(mm)
STAPLER BODY	WZULS-A-S	60	12
	WZULS-A-L	160	12
	WZULS-A-XL	260	12
	WZULS-B-S	60	12
	WZULS-B-L	160	12
	WZULS-B-XL	260	12
RELOADS	MODELS	SPECIFICATIONS	COLOR OF RELOADS
STRAIGHT RELOADS	WZULS-P1	30-2.5	white
	WZULS-P1	45-2.5	white
	WZULS-P1	45-3.5	blue
	WZULS-P1	45-4.8	green
	WZULS-P1	60-2.5	white
	WZULS-P1	60-3.5	blue
	WZULS-P1	60-4.8	green
ARTICULATING RELOADS	WZULS-P2	30-2.5	white
	WZULS-P2	45-2.5	white
	WZULS-P2	45-3.5	blue
	WZULS-P2	45-4.8	green
	WZULS-P2	60-2.5	white
	WZULS-P2	60-3.5	blue
	WZULS-P2	60-4.8	green
TRI STAPLE	WZULS-P3-30B	30-2.5-3.0	brown
	WZULS-P3-30BE	30-2.5-3.0	brown
	WZULS-P3-30P	30-3.5-4.0	purple
	WZULS-P3-45B	45-2.5-3.0	brown
	WZULS-P3-45BE	45-2.5-3.0	brown
	WZULS-P3-45P	45-3.5-4.0	purple
	WZULSP3-45H	45-4.8-5.0	black
	WZULS-P3-60B	60-2.5-3.0	brown
	WZULS-P3-60P	60-3.5-4.0	purple
	WZULS-P3-60H	60-4.8-5.0	black

Q:What’s the color meaning of different reload staple height ? Applicable for which surgeries

A: Green reload(4.8mm):Main bronchus, lung lobes

Blue reload (3.5mm):Tissue of general thickness, gastrointestinal digestive

White reload(2.5mm):Vessels above 5mm and small intestine under laparoscopic surgery

Q: How could ensure Microcure endoscopic linear cutter stapler and reloads the anatomosis intactly., no bleeding?

A: Microcrue mean time done the corresponding preesure lab test,The anastomosis should bear no less than 3.6x10³Pa pressure.

Q: Could Microcure endoscopic linear cutter stapler reloads could compatible with Medtronic staplers ?

A: Yes, but we suggest use orginal compnents and stapler collocation, the experience is be better.

Q: What’s the different between the Microcure genernation I stapler and genernation II stapler?

A: For stapler equipment:

1.The genernation I stapler loading/unscrew button designed at the connection part between the component and the body.It is easy to slip when changing the nails during the operation, resulting in a waste of costs during the operation and hindering the operation. Therefore, we have made certain improvements on this basis. At present, the second genernation II loading/unscrew button is designed on the body to solve the above-mentioned problems.

2.The generation I stapler steering knob uses a gear-breaking design, the generation II was changed to a pinball design steering knob, which is smooth to use, and has a better experience.

For reloads:

1.The genernation I reload has a spindle design in the front end of the nail seat and nail chamber. The second-generation nail cartridge is changed to a drop-shaped nail slot, and the B-shaped nail is fully completed, which makes the tissue after the suture better air-tight and has a better hemostatic effect. At the same time, we also upgraded the non-integrated nail seat to an integrally formed one. Nail holders provide better products for clinicians and patients.

Q:Regarding the curved tip/ olecranon tip , is this workable for all the reload model?

A: Yes, the other model without white reload need be customized in advance, the production time take 20-25 days.

Q: What’s the speical meaning about Gecko claw and crocodile mouth design?

A:The gecko claws on the surface of the staple cartridge and the crocodile mouth design on

the cartridge head increase the friction and strengthen the clamping force of the jaws to prevent the tissue from slipping off.
