Applications：Mainly applicable to the resection、anastomosis and transection in the endoscopy surgery of gastrointestinal and other digestive tract.
Product highlights:
1.Tri-staple technology will prevent bleeding after surgery and reduce clinical risk
2.One piece shaped anvil design makes well B shaped
3. Universal type of body design、Perfect modeling、Three kinds of specification that can fit all loading unit of our company.
4. Special marble-type rotate system allows surgeons to perform the rotation more steady, smooth and easy.
5. The special "droplets" shaping groove design can ensure B-shape stapler nail formation and provide better hemostatic effect and air tightness effect for clinical operation.
6.The special “olecranon-shape” anvil design can not only ensure the safe resection and anastomosis of blood vessels via visualization but also allows blunt dissection of tissues or organs. One device with multi-functions allows easy surgical operations!
7. The thin nail anvil design make it possible to enter tissue smoothly with less tissue dissection which reduces tissue damage.
8. The novel switch design allows the convenient replace components.
9. The disposable of loading unit ensure the sharpness of knife which ensure the clear resection , minimized the risk of transfer and cross infecton of tumor cells.
10. Standard loading unit and Articulating loading unit (applying 15°, 30°, 45° three levels of rotation) are avaliable. Three kinds of nail line length of 30mm, 45mm and 60mm; Four different heights of nail of 2.0mm, 2.5mm, 3.5mm, 4.8mm that can meet the clinical demands comprehensively and provide abundant choices for surgeons.
| Availability: | |
|---|---|
| Quantity: | |

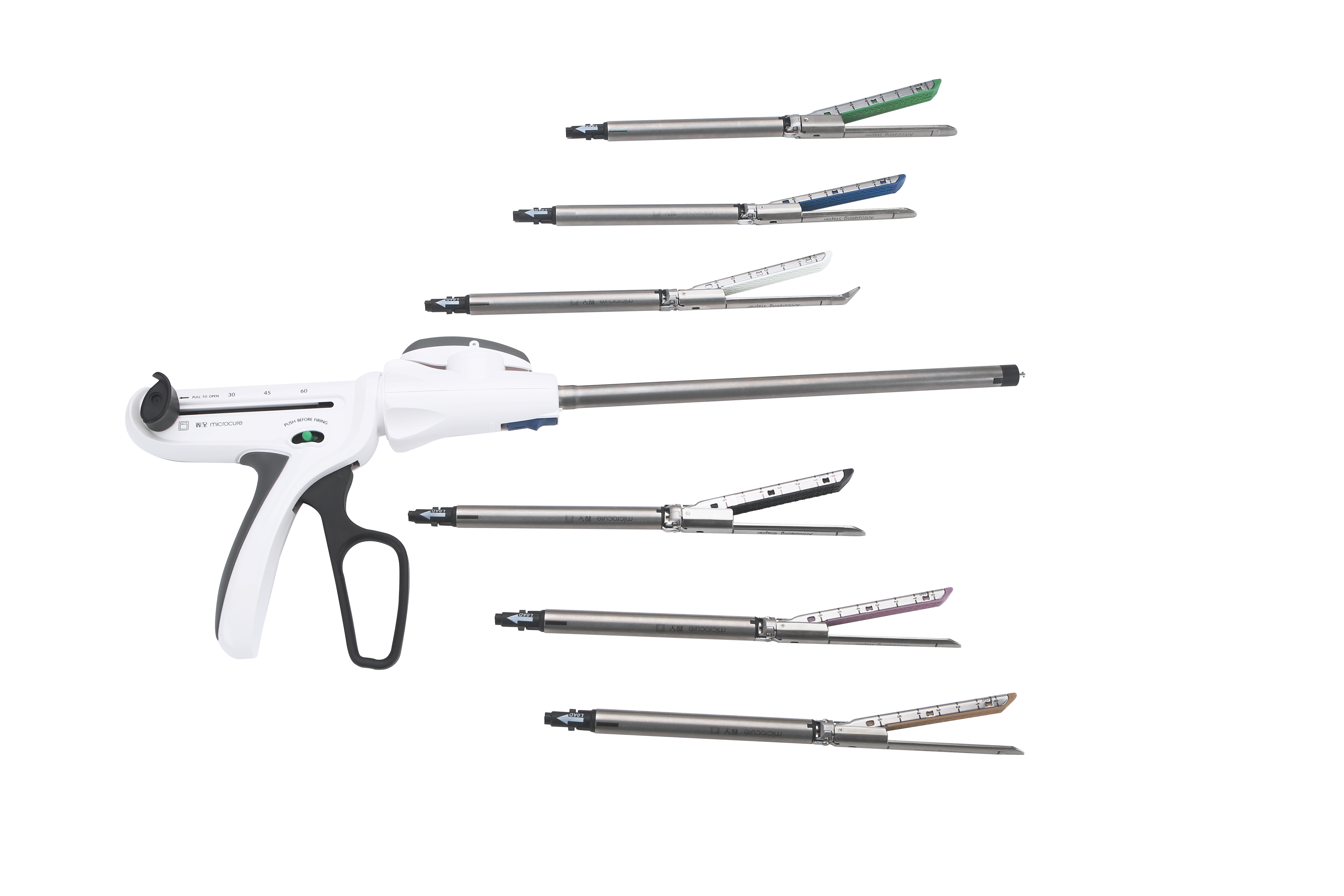

Disposable endoscopic linear cutter stapler and reloads is mainly composed of lock sleeve, shell, upper and lower regulating housing, lock pin, push block, fixed handle, firing handle, staple housing seat, staple anvil, staple anvil cover, Press cover ,safety board and staple. Each stapler does not contain its own components.
It places two triple-staggered rows of titanium staples. The stapler can take the place of handwork to cut and suture the tissue at the same time. By using the stapler can shorten operation time, decrease the work of doctors, and avoid the possibility of cross infection.
It is sterilized by irradiation. The stapler nails are normally intended for continuous use for more than 30 days.
Scope of application:
Applicable for resection, transection and anastomosis of lung, bronchial
tissue, stomach and intestine in open or endoscopic surgery.
Product features:
1."Curved tip "at the distal end of the anvil can not only ensure the safe resection and anastomosis of blood vessels via visualization but also allows blunt dissection of tissues or organs.
2.The special”droplets” shaping groove design can ensure B-shape staple stapler formation and provide better hemostatic effect and air tightness effect for clinical operation.
3.Unibody nail anvil,render bite force adequate and complete compression.
4.Single-hand operation,make reloads to easily clamp and release, free up surgeons’
hands .
5.Special marble-type rotary nob delivers more smooth,stable and easy
rotation,and the large wave-shaped knob for easy one-handed operation.
6.Universal type of body design,Perfect modeling,Three kinds of specification that can fit all loading unit of our company.
Specifications&Models:
STAPLER | MODELS | LENGTH(mm) | SHAFT DIAMETER(mm) |
STAPLER BODY | WZULS-A-S | 60 | 12 |
WZULS-A-L | 160 | 12 | |
WZULS-A-XL | 260 | 12 | |
WZULS-B-S | 60 | 12 | |
WZULS-B-L | 160 | 12 | |
WZULS-B-XL | 260 | 12 | |

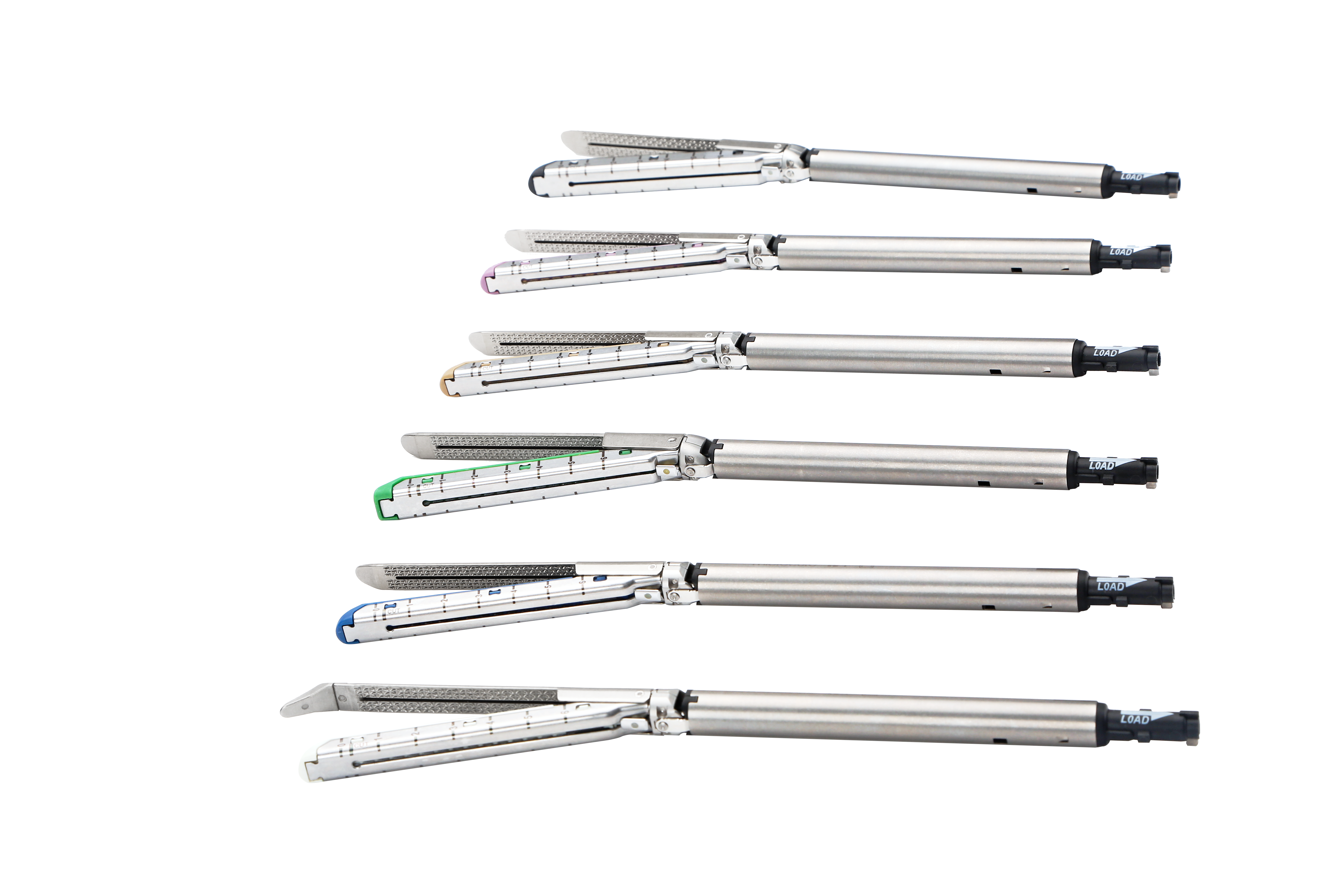

RELOADS | MODELS | SPECIFICATIONS | COLOR OF RELOADS |
STRAIGHT RELOADS | WZULS-P1 | 30-2.5 | white |
WZULS-P1 | 45-2.5 | white | |
WZULS-P1 | 45-3.5 | blue | |
WZULS-P1 | 45-4.8 | green | |
WZULS-P1 | 60-2.5 | white | |
WZULS-P1 | 60-3.5 | blue | |
WZULS-P1 | 60-4.8 | green | |
ARTICULATING RELOADS | WZULS-P2 | 30-2.5 | white |
WZULS-P2 | 45-2.5 | white | |
WZULS-P2 | 45-3.5 | blue | |
WZULS-P2 | 45-4.8 | green | |
WZULS-P2 | 60-2.5 | white | |
WZULS-P2 | 60-3.5 | blue | |
WZULS-P2 | 60-4.8 | green | |
TRI STAPLE | WZULS-P3-30B | 30-2.5-3.0 | brown |
WZULS-P3-30BE | 30-2.5-3.0 | brown | |
WZULS-P3-30P | 30-3.5-4.0 | purple | |
WZULS-P3-45B | 45-2.5-3.0 | brown | |
WZULS-P3-45BE | 45-2.5-3.0 | brown | |
WZULS-P3-45P | 45-3.5-4.0 | purple | |
WZULSP3-45H | 45-4.8-5.0 | black | |
WZULS-P3-60B | 60-2.5-3.0 | brown | |
WZULS-P3-60P | 60-3.5-4.0 | purple | |
WZULS-P3-60H | 60-4.8-5.0 | black |
Disposable endoscopic linear cutter stapler and reloads is mainly composed of lock sleeve, shell, upper and lower regulating housing, lock pin, push block, fixed handle, firing handle, staple housing seat, staple anvil, staple anvil cover, Press cover ,safety board and staple. Each stapler does not contain its own components.
It places two triple-staggered rows of titanium staples. The stapler can take the place of handwork to cut and suture the tissue at the same time. By using the stapler can shorten operation time, decrease the work of doctors, and avoid the possibility of cross infection.
It is sterilized by irradiation. The stapler nails are normally intended for continuous use for more than 30 days.
Scope of application:
Applicable for resection, transection and anastomosis of lung, bronchial
tissue, stomach and intestine in open or endoscopic surgery.
Product features:
1."Curved tip "at the distal end of the anvil can not only ensure the safe resection and anastomosis of blood vessels via visualization but also allows blunt dissection of tissues or organs.
2.The special”droplets” shaping groove design can ensure B-shape staple stapler formation and provide better hemostatic effect and air tightness effect for clinical operation.
3.Unibody nail anvil,render bite force adequate and complete compression.
4.Single-hand operation,make reloads to easily clamp and release, free up surgeons’
hands .
5.Special marble-type rotary nob delivers more smooth,stable and easy
rotation,and the large wave-shaped knob for easy one-handed operation.
6.Universal type of body design,Perfect modeling,Three kinds of specification that can fit all loading unit of our company.
Specifications&Models:
STAPLER | MODELS | LENGTH(mm) | SHAFT DIAMETER(mm) |
STAPLER BODY | WZULS-A-S | 60 | 12 |
WZULS-A-L | 160 | 12 | |
WZULS-A-XL | 260 | 12 | |
WZULS-B-S | 60 | 12 | |
WZULS-B-L | 160 | 12 | |
WZULS-B-XL | 260 | 12 | |
RELOADS | MODELS | SPECIFICATIONS | COLOR OF RELOADS |
STRAIGHT RELOADS | WZULS-P1 | 30-2.5 | white |
WZULS-P1 | 45-2.5 | white | |
WZULS-P1 | 45-3.5 | blue | |
WZULS-P1 | 45-4.8 | green | |
WZULS-P1 | 60-2.5 | white | |
WZULS-P1 | 60-3.5 | blue | |
WZULS-P1 | 60-4.8 | green | |
ARTICULATING RELOADS | WZULS-P2 | 30-2.5 | white |
WZULS-P2 | 45-2.5 | white | |
WZULS-P2 | 45-3.5 | blue | |
WZULS-P2 | 45-4.8 | green | |
WZULS-P2 | 60-2.5 | white | |
WZULS-P2 | 60-3.5 | blue | |
WZULS-P2 | 60-4.8 | green | |
TRI STAPLE | WZULS-P3-30B | 30-2.5-3.0 | brown |
WZULS-P3-30BE | 30-2.5-3.0 | brown | |
WZULS-P3-30P | 30-3.5-4.0 | purple | |
WZULS-P3-45B | 45-2.5-3.0 | brown | |
WZULS-P3-45BE | 45-2.5-3.0 | brown | |
WZULS-P3-45P | 45-3.5-4.0 | purple | |
WZULSP3-45H | 45-4.8-5.0 | black | |
WZULS-P3-60B | 60-2.5-3.0 | brown | |
WZULS-P3-60P | 60-3.5-4.0 | purple | |
WZULS-P3-60H | 60-4.8-5.0 | black |
